We supply a wide range of Fuel Stations

Call 0795 831 0032 for more info or best prices.

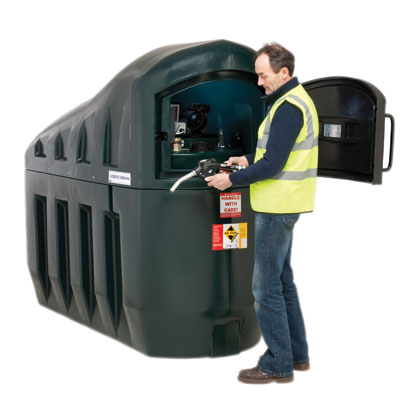

1300SLFS Slimline Bunded Fuel Station
Length:	2300 mm
Width:	950 mm
Height:	1850 mm
Weight:	170 kg
Actual Capacity:	1405 litres
Nominal Capacity:	1335 litres
Fuel Stations provide forecourt style refuelling convenience, with the assurance of a safe and secure on-site fuel storage solution. Fully bunded and available in capacities from c. 1300 litres to c.10,000 litres, Harlequin Fuel Stations also come with a choice of voltages ? 12v DC, 24v DC, 110v AC and 240v AC. The new slimline fuel station models are available in 1300 and 2500 litre capacities and can be accommodated in almost any type of commercial, agricultural or industrial premises where space is an issue. These space saving fuel tanks offer the convenience of forecourt refuelling capabilities with minimal space requirements. At just 950mm wide, the new 1300 litre model still manages to incorporate 700mm wide door access. The term ‘slimline’ therefore, applies only to the outer dimensions of the tank. In all other respects, customers can enjoy the same ease of access as with other, standard fuel station models within the Harlequin range. Product Overview: 4m delivery hose with automatic shut off nozzle Overfill prevention capability Lockable fill and inspection points Integral venting Bulkhead light on 240V option Mechanical flow metre Electronic contents gauge Tank contents dipstick Spinsecure lock Cim-Tek Tank Dryer Choice of 56lpm or 72lpm pump on 240V options Choice of 110V AC, 240V AC, 12V DC or 24V DC options Choice of 10 micron particulate filter or 30 micron particulate and water filter on 240V models

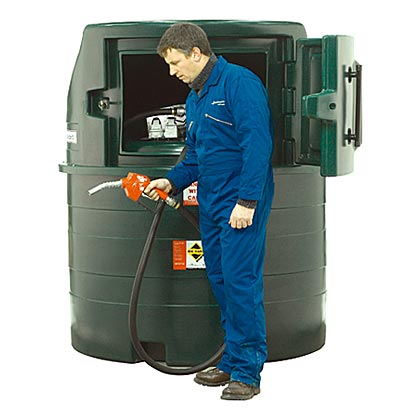

1400FS Bunded Fuel Station
Diameter:	1580 mm
Height:	1930 mm
Weight:	147 kg
Actual Capacity:	1487 litres
Nominal Capacity:	1413 litres
Product Summary Designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial Diesel users, New Generation Harlequin Fuel Stations are the most advanced self-contained Diesel Dispensing Solutions available from any UK or European manufacturer. The 1400FS model consists of a Bunded Plastic Diesel Tank, rotationally moulded from a premium grade of fuel resistant, Medium Density Polyethylene and supplied complete with: NEW 2” BSP Lockable Fill Point with Screw Cap and Chain NEW 4” Lockable Inspection Point with Plastic Screw Cap NEW Choice of 12v (56lpm), 24v (56lpm), 110v (56lpm), 240v (56lpm) or 240v (72lpm) Electric Pump NEW Choice of 10 micron Particulate Filtration or 30 micron Integrated Particulate and Water Filtration NEW Mechanical Flow Meter with Resetable Batch Totaliser Weatherproof Fuel Tank Vent Contents Dipstick ApolloElectronic Contents Gauge LRC Failsafe Overfill Prevention Capability Lockable Access 4 metre Fuel Delivery Hose with Three Stage Automatic Shut Off Nozzle Emergency Isolation Switch Bulkhead Light ? 240v Models only Factory Fitted Electrical Connection Point - 240v and 110v Models only Battery Fly Leads ? 12v and 24v Models only Options NEW Run Dry Pump Protection System which automatically shuts off the pump in the event of the tank running dry and reactivates the system when the tank is refueled.

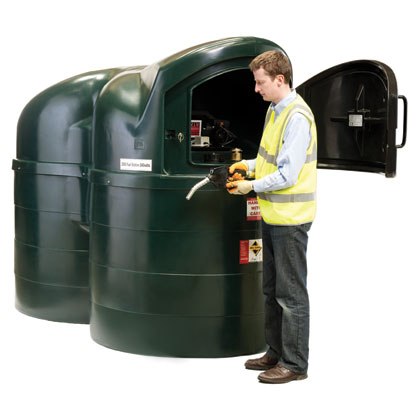

2500SLFS Slimline Bunded Fuel Station
Length:	2550 mm
Width:	1385 mm
Height:	1985 mm
Weight:	210 kg
Actual Capacity:	2538 litres
Nominal Capacity:	2411 litres
Product Summary Fuel Stations provide forecourt style refuelling convenience, with the assurance of a safe and secure on-site fuel storage solution. Fully bunded and available in capacities from c. 1300 litres to c.10,000 litres, Harlequin Fuel Stations also come with a choice of voltages ? 12v DC, 24v DC, 110v AC and 240v AC. The new slimline fuel station models are available in 1300 and 2500 litre capacities and can be accommodated in almost any type of commercial, agricultural or industrial premises where space is an issue. These space saving fuel tanks offer the convenience of forecourt refuelling capabilities with minimal space requirements. At just 1385mm wide, the new 2500 litre model still manages to incorporate 730mm wide door access. The term ‘slimline’ therefore, applies only to the outer dimensions of the tank. In all other respects, customers can enjoy the same ease of access as with other, standard fuel station models within the Harlequin range. Product Overview: 6m delivery hose with automatic shut off nozzle Overfill prevention capability Lockable fill and inspection points Integral venting Bulkhead light on 240V option Mechanical flow metre Electronic contents gauge Tank contents dipstick Spinsecure lock Cim-Tek Tank Dryer Choice of 56lpm or 72lpm pump on 240V options Choice of 110V AC, 240V AC, 12V DC or 24V DC options Choice of 10 micron particulate filter or 30 micron particulate and water filter on 240V models

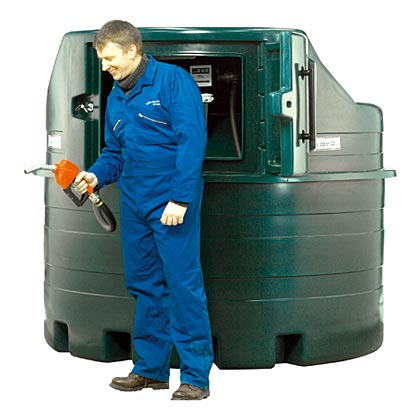

2500FS Bunded Fuel Station
Diameter:	2090 mm
Height:	1930 mm
Weight:	200 kg
Actual Capacity:	2716 litres
Nominal Capacity:	2580 litres
Product Summary Designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial Diesel users, New Generation Harlequin Fuel Stations are the most advanced self-contained Diesel Dispensing Solutions available from any UK or European storage tank manufacturer. The 2500FS model consists of a Bunded Plastic Diesel Storage and Dispensing Tank, rotationally moulded from a premium grade of fuel resistant, Medium Density Polyethylene and supplied complete with: NEW 2” BSP Lockable Fill Point with Screw Cap and Chain NEW 4” Lockable Inspection Point with Plastic Screw Cap NEW Choice of 12v (56lpm), 24v (56lpm), 110v (56lpm), 240v (56lpm) or 240v (72lpm) Electric Pump NEW Choice of 10 micron Particulate Filtration or 30 micron Integrated Particulate and Water Filtration 6 metre Fuel Delivery Hose with Three Stage Automatic Shut Off Nozzle Fuel Tank Vent Oil Tank Contents Dipstick ApolloElectronic Oil Tank Contents Gauge LRC Failsafe Oil Tank Overfill Prevention Capability Lockable Access Emergency Isolation Switch Bulkhead Light ? 240v Models only Factory Fitted Electrical Connection Point - 240v and 110v Models only Battery Fly Leads ? 12v and 24v Models only Mechanical Flow Meter with Resetable Batch Totaliser Options NEW Run Dry Pump Protection System which automatically shuts off the pump in the event of the tank running dry and reactivates the system when the tank is refueled.

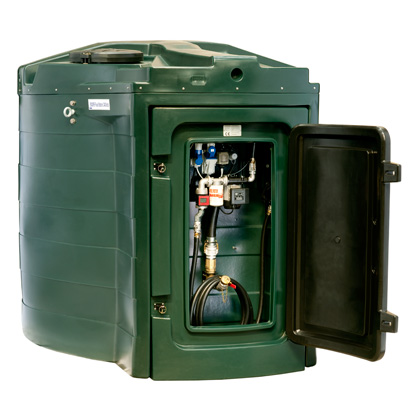

5000FS Bunded Fuel Station
Length:	2800 mm
Width:	2200 mm
Height:	2270 mm
Weight:	380 kg
Actual Capacity:	5307 litres
Nominal Capacity:	5042 litres
Product Summary Designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial Diesel users, New Generation Harlequin Fuel Stations are the most advanced self-contained Diesel Dispensing Solutions available from any UK or European storage tank manufacturer. The 5000FS Fuel Station is a Bunded Diesel Storage and Dispensing Tank, rotationally moulded from a premium grade of fuel resistant, Medium Density Polyethylene and supplied complete with: NEW Choice of 12v (56lpm), 24v (56lpm), 110v (56lpm), 240v (56lpm) or 240v (72lpm) Electric Pump NEW Choice of 10 micron Particulate Filtration or 30 micron Integrated Particulate and Water Filtration NEW Premium quality Electronic Oil Tank Contents Gauge +/- 1% Accuracy - 110v and 240v Models Only NEW Hydrostatic Oil Tank Contents Gauge - 12v and 24v Models Only NEW Mechanical Overfill Prevention Valve - 12 and 24v Models Only NEW Cabinet Drip Mat Failsafe LRC Failsafe Overfill Prevention Capability Offset 2" Fill Point with Lockable Screw Cap, Lever Type Isolation Valve and Non Return Valve 4” Inspection Point with Lockable Plastic Screw Cap Fuel Tank Vent Bund Warning Alarm Lockable Access 6 metre Fuel Delivery Hose with Three Stage Automatic Shut Off Nozzle Digital Flow Meter +/- 0.5% Accuracy with +/-0.2% Repeatability Emergency Isolation Switch Bulkhead Light ? 240v Models only Factory Fitted Electrical Connection Point - 240v and 110v Models only Battery Fly Leads ? 12v and 24v Models only Options NEW Run Dry Pump Protection System which automatically shuts off the pump in the event of the tank running dry and reactivates the system when the tank is refueled. A factory fitted 80 user Fuel Management System can be supplied upon request and at additional cost to all 240v models, complete with 10 Fuel Management Keys. Please note that this system cannot be retrofitted at a later date.

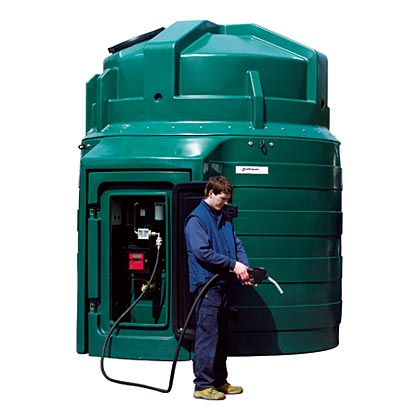

10000FS Bunded Fuel Station
Length:	3265 mm
Width:	2800 mm
Height:	3350 mm
Weight:	725 kg
Actual Capacity:	10100 litres
Nominal Capacity:	9595 litres
Product Summary Designed specifically to satisfy the fuel storage requirements of agricultural, commercial and industrial Diesel users, New Generation Harlequin Fuel Stations are the most advanced self-contained Diesel Dispensing Solutions available from any UK or European storage tank manufacturer. The 10000FS Fuel Station is a Bunded Diesel Storage and Dispensing Tank, rotationally moulded from a premium grade of fuel resistant, Medium Density Polyethylene and supplied complete with: NEW Choice of 12v (56lpm), 24v (56lpm), 110v (56lpm), 240v (56lpm) or 240v (72lpm) Electric Pump NEW Choice of 10 micron Particulate Filtration or 30 micron Integrated Particulate and Water Filtration NEW Premium quality Electronic Oil Tank Contents Gauge +/- 1% Accuracy - 110v and 240v Models Only NEW Hydrostatic Oil Tank Contents Gauge - 12v and 24v Models Only NEW Mechanical Overfill Prevention Valve - 12 and 24v Models Only NEW Cabinet Drip Mat Failsafe LRC Failsafe Overfill Prevention Capability Offset 2" Fill Point with Lockable Screw Cap, Lever Type Isolation Valve and Non Return Valve 4” Inspection Point with Lockable Plastic Screw Cap Fuel Tank Vent Bund Warning Alarm Lockable Access 6 metre Fuel Delivery Hose with Three Stage Automatic Shut Off Nozzle Digital Flow Meter +/- 0.5% Accuracy with +/-0.2% Repeatability Emergency Isolation Switch Bulkhead Light ? 240v Models only Factory Fitted Electrical Connection Point - 240v and 110v Models only Battery Fly Leads ? 12v and 24v Models only Options NEW Run Dry Pump Protection System which automatically shuts off the pump in the event of the tank running dry and reactivates the system when the tank is refueled. A factory fitted 80 user Fuel Management System can be supplied upon request and at additional cost to all 240v models, complete with 10 Fuel Management Keys. Please note that this system cannot be retrofitted at a later date.



Call 0795 831 0032 for more info or best prices.
